LV Family

Nimbess LV 24V

2.56 kWh 24 V lithium home energy storage

A compact 2.56 kWh, 24 V LFP unit sized for studios, small homes and bridge-power use cases. Same intelligent BMS and same five-year warranty as the rest of the LV Family, in a small footprint.

Request a Quote Get Brochure

— Product views

Every angle.

Studio renders of the Nimbess LV 24V from every side — front, back, profile, ports.

— 01 / 05

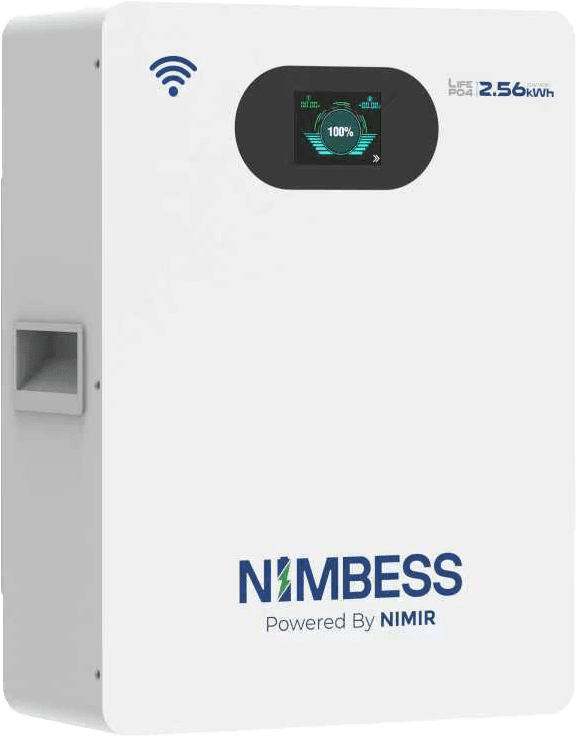

Three-quarter front view.

— 02 / 05

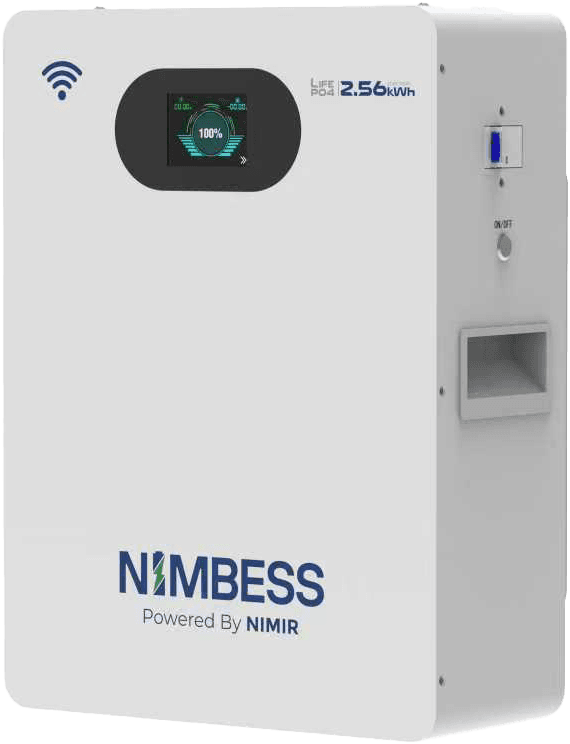

Branded face with OLED status display.

— 03 / 05

Side profile — wall mount ready.

— 04 / 05

Detail — terminal block and ports.

— 05 / 05

Floor-standing configuration.

— Technical

Specifications

Nominal Energy: 2.56 kWh
Nominal Voltage: 25.6 V
Nominal Capacity: 100 Ah
Cell Type: LFP (LiFePO₄)
IP Rating: IP20
Communication: RS485 · USB · CAN
Cycle Life: Up to 10,000 cycles @ 80% DoD
Charge Temperature: 0 to 55°C
Discharge Temperature: −20 to 55°C
Installation: Wall-mounted or floor-standing
Warranty: 5 Years
Certifications: CE · MSDS · UN38.3 · IEC 62619 · UL1973 · ROHS

— Highlights

Features

Up to 10,000 cycles at 80% Depth of Discharge
Compact wall-mount form factor
Tier-1 LFP cells (BYD · Sunwoda · NETC)
Intelligent Nimbess BMS
Optional Wi-Fi remote monitoring
Compatible with Solis, Victron, GoodWe, Growatt, Deye, SMA, LuxPower, SoFar inverters
