Nimbess LV 48V · 5.12 kWh

5.12 kWh 48 V lithium home energy storage

Nimbess LV 5.12 kWh delivers efficient, long-lasting energy storage with high power density and fast charging. Designed for durability, reliability and stable performance, its compact, maintenance-free design ensures easy installation while advanced safety and management systems offer dependable power and extended battery life.

Request a Quote Get Brochure

— Product views

Every angle.

Studio renders of the Nimbess LV 48V · 5.12 kWh from every side — front, back, profile, ports.

— 01 / 06

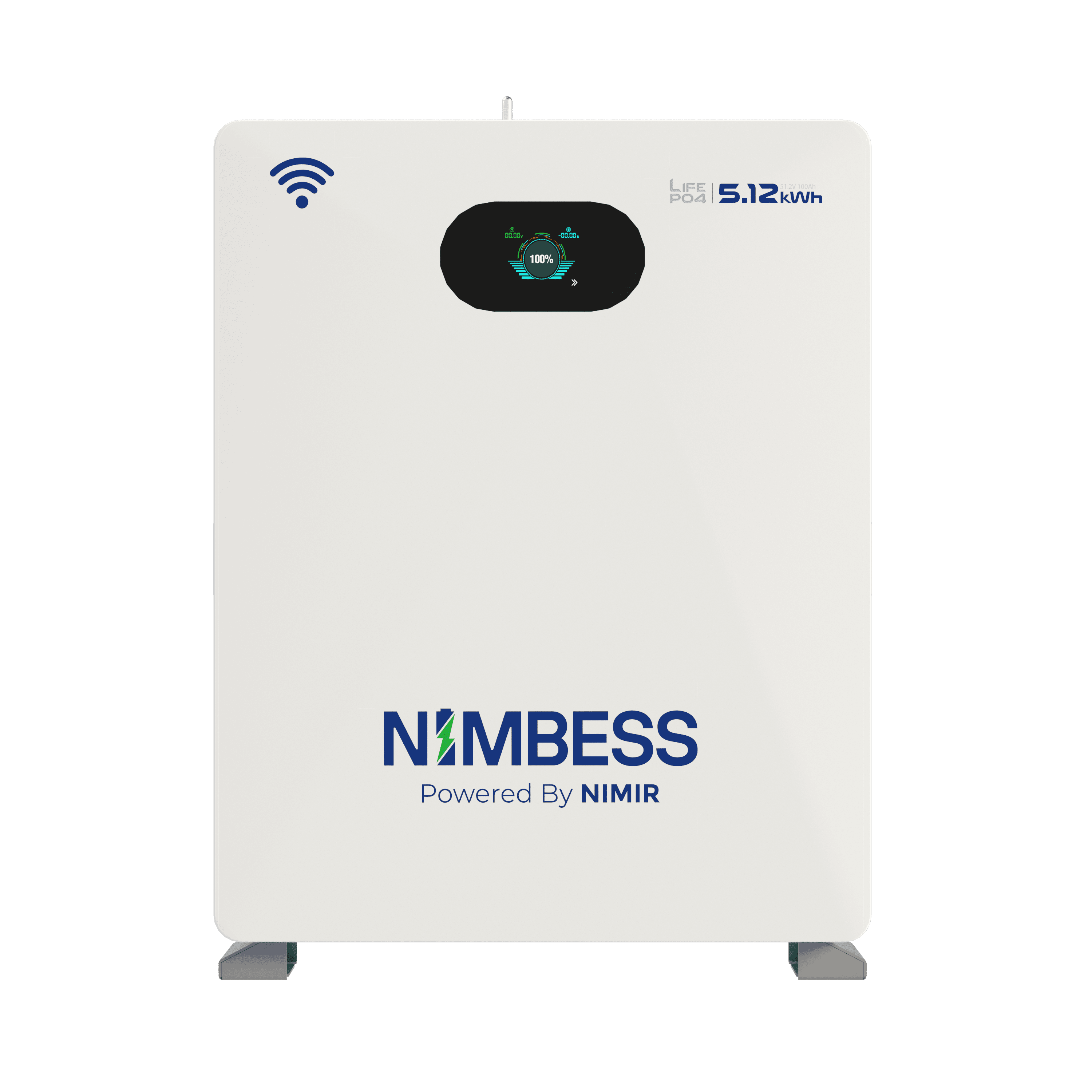

Front view — branded face.

— 02 / 06

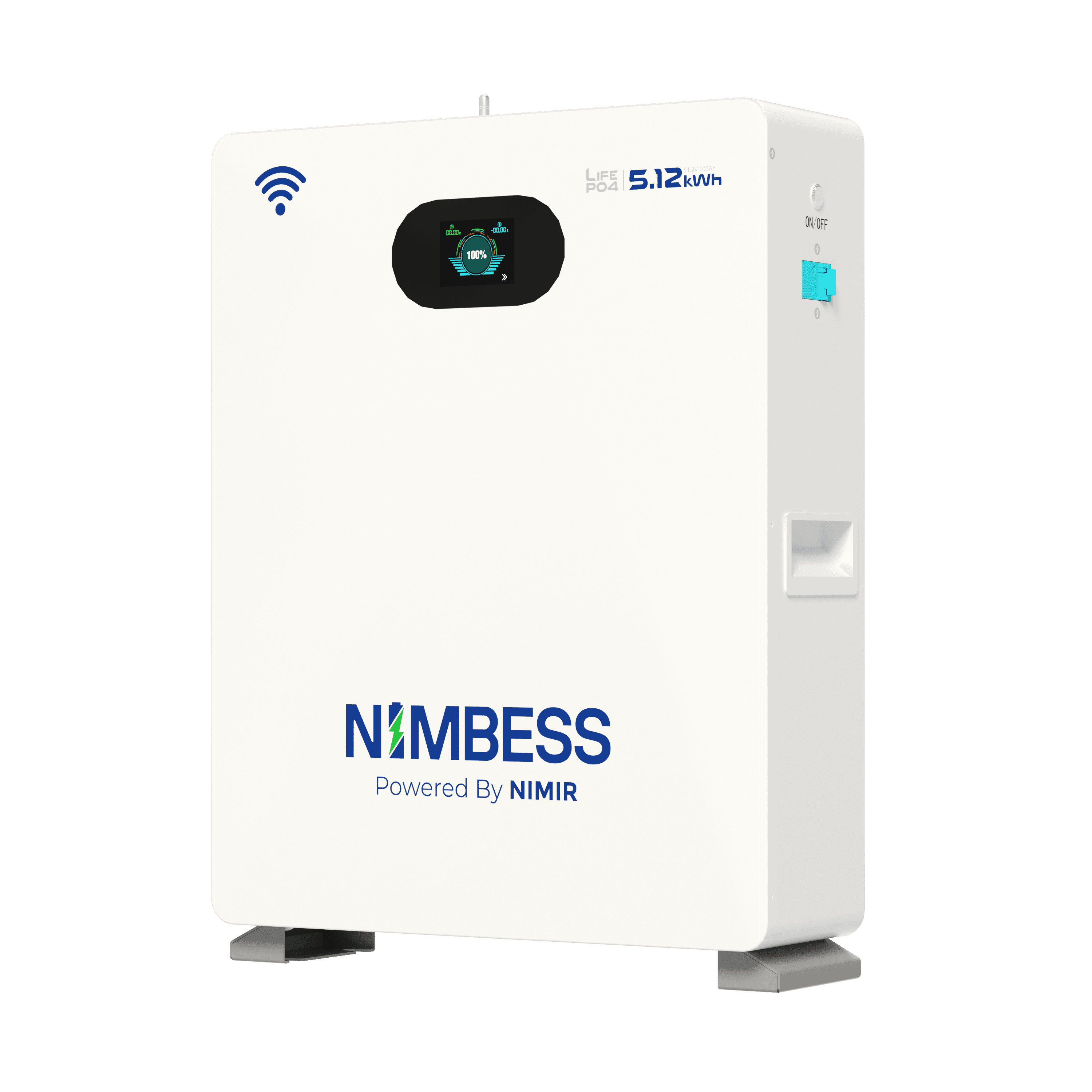

Three-quarter perspective.

— 03 / 06

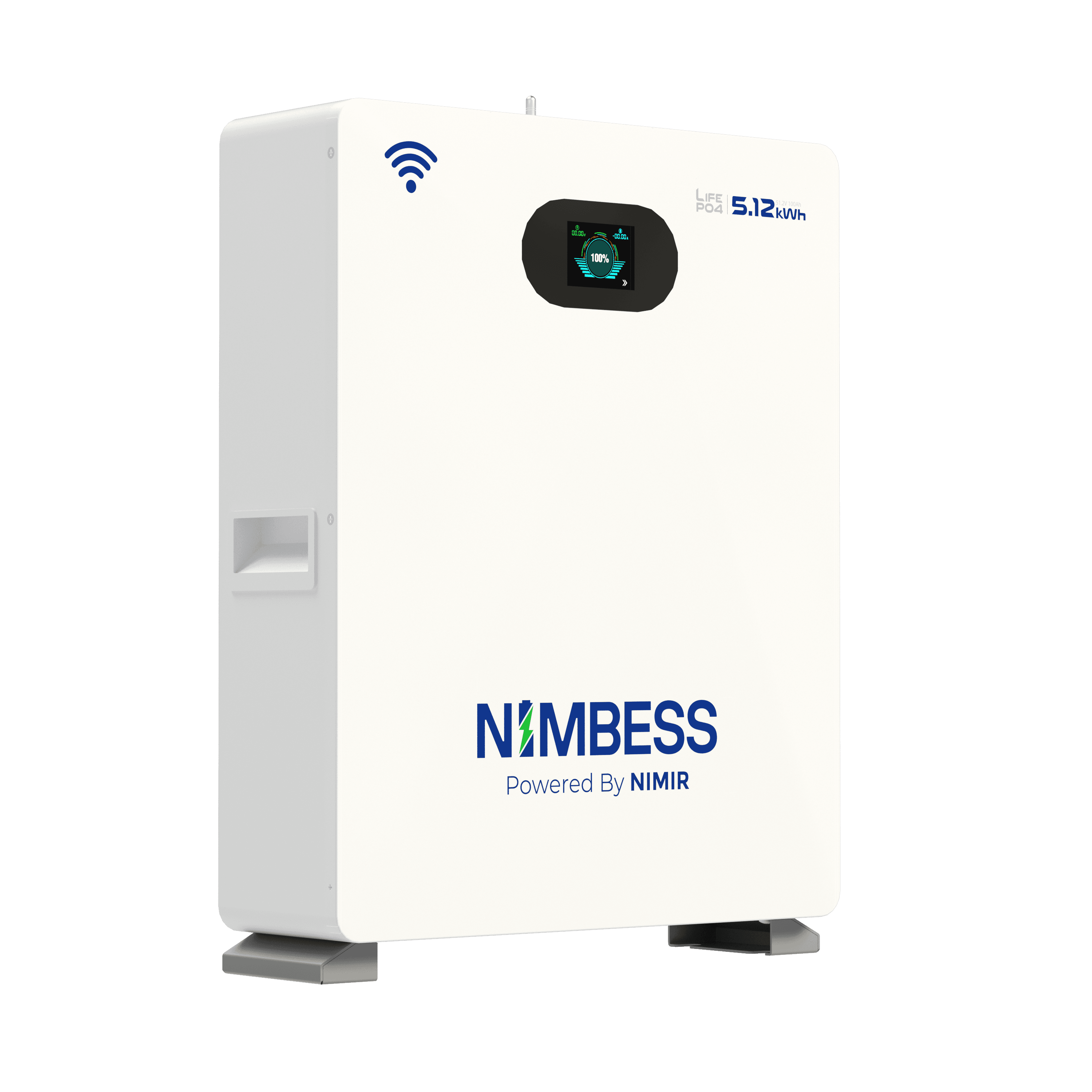

Floor-stand configuration.

— 04 / 06

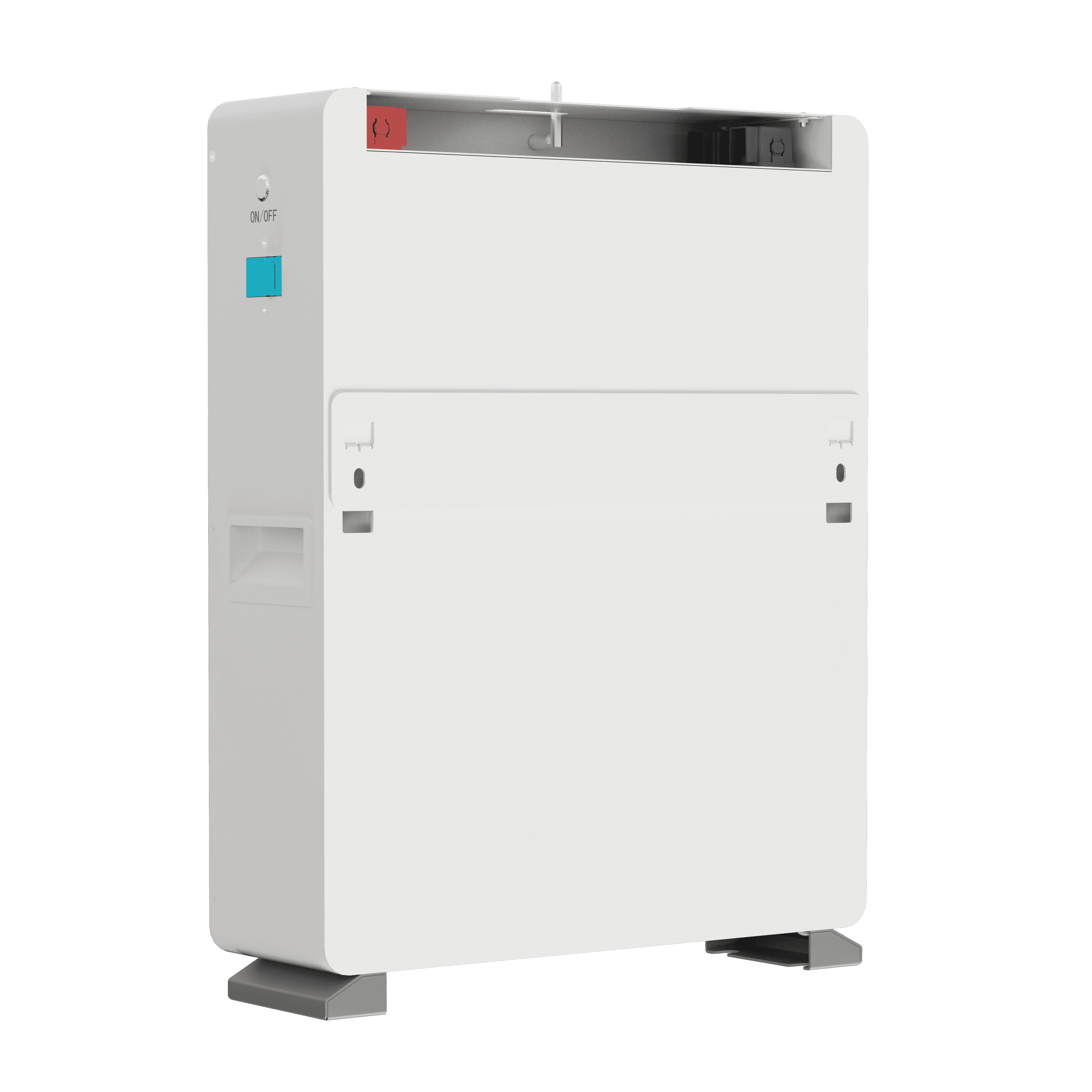

Side profile — ports and venting.

— 05 / 06

Detail — OLED status display.

— 06 / 06

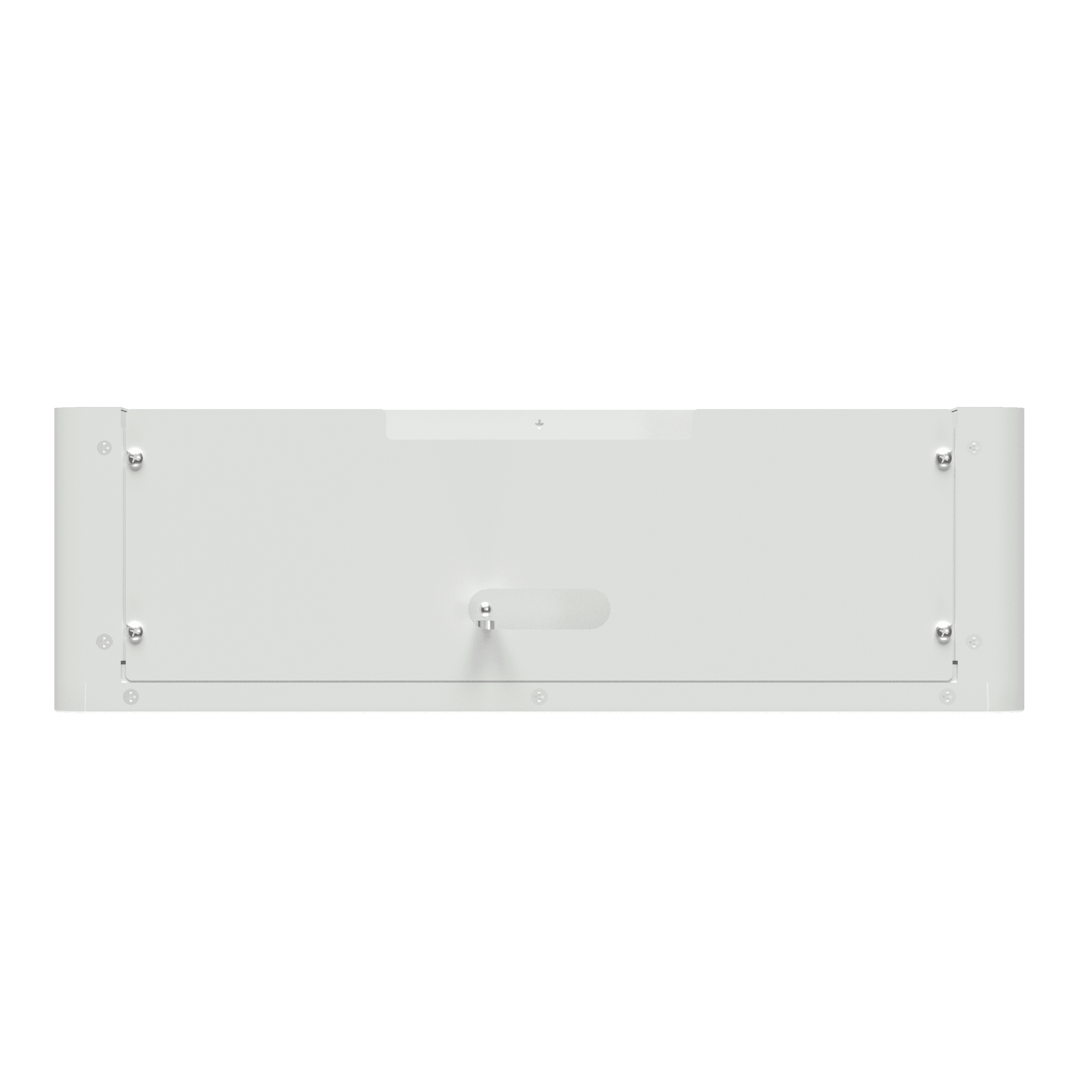

Rear view — wall-mount bracket.

— Technical

Specifications

Nominal Energy: 5.12 kWh
Nominal Voltage: 51.2 V
Nominal Capacity: 100 Ah
Cell Type: LFP (LiFePO₄)
Standard Charge Voltage: 56.8 V
Max. Discharge Current: 100 A
Discharge Cut-off Voltage: 44.8 V
IP Rating: IP20
Communication: RS485 · USB · CAN
Cycle Life: Up to 10,000 cycles @ 80% DoD
Charge Temperature: 0 to 55°C
Discharge Temperature: −20 to 55°C
Dimensions (W×D×H): 510 × 600 × 153 mm
Net Weight: 52 kg
Installation: Wall-mounted or floor-standing
Warranty: 5 Years
Certifications: CE · MSDS · UN38.3 · IEC 62619 · UL1973 · ROHS

— Highlights

Features

Up to 10,000 cycles at 80% Depth of Discharge
1C/1C continual charge & discharge
Low-voltage safety connection
Superior LiFePO₄ safety performance
Up to 16 modules in parallel
Optional Wi-Fi remote monitoring
Compatible with Solis, Victron, GoodWe, Growatt, Deye, SMA, LuxPower, SoFar inverters
