Nimbess LV 48V · 14.33 kWh
14.33 kWh 48 V lithium home energy storage
Scales the wall-mount line to 14.33 kWh in a single unit, built around higher-density 280 Ah LFP cells. Engineered for larger homes and high-load profiles where extended autonomy matters.
— Product views
Every angle.
Studio renders of the Nimbess LV 48V · 14.33 kWh from every side — front, back, profile, ports.
%2F1.png&w=3840&q=75)
— 01 / 07

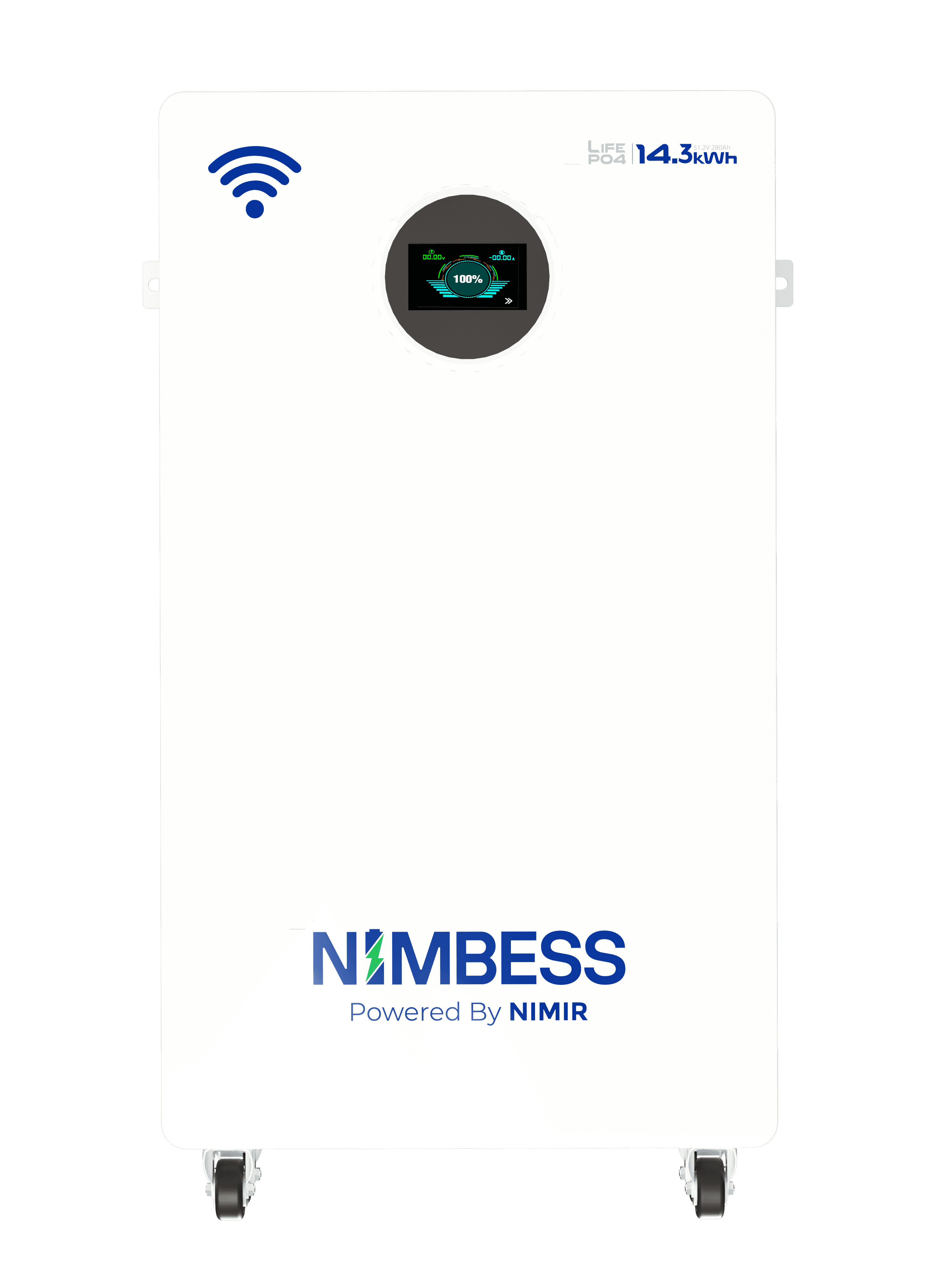

Front view — 14.33 kWh chassis.
%2F2.png&w=3840&q=75)
— 02 / 07

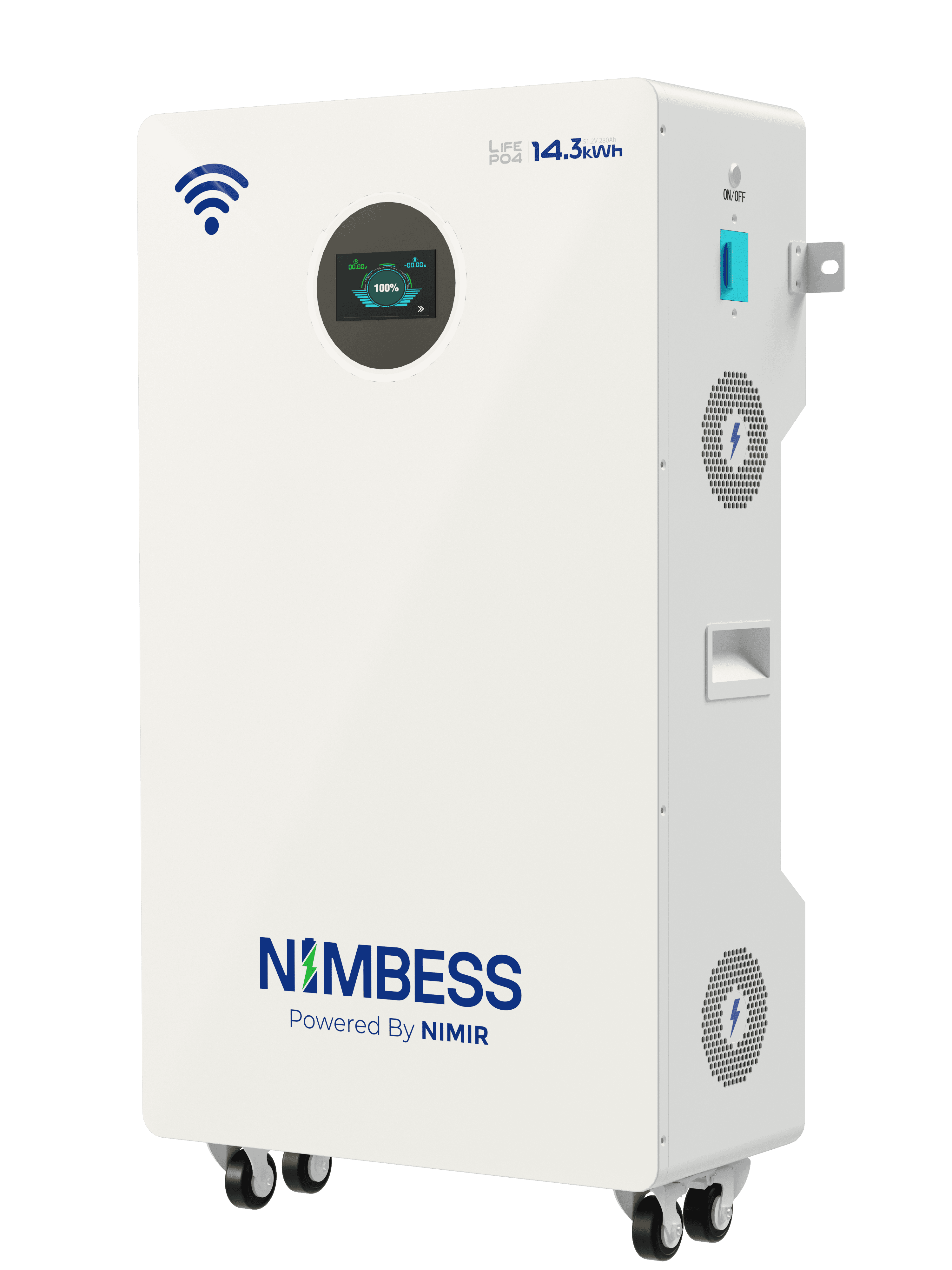

Three-quarter perspective.
%2F3.png&w=3840&q=75)
— 03 / 07
Side profile — extended depth.
%2F4.png&w=3840&q=75)
— 04 / 07
Detail — display module.
%2F5.png&w=3840&q=75)
— 05 / 07
Rear view — bracket assembly.
%2F6.png&w=3840&q=75)
— 06 / 07
Floor-standing configuration.
%2F7.png&w=3840&q=75)
— 07 / 07
Stacked deployment view.
— Technical
Specifications
- Nominal Energy
- 14.33 kWh
- Nominal Voltage
- 51.2 V
- Nominal Capacity
- 280 Ah
- Cell Type
- LFP (LiFePO₄)
- Standard Charge Voltage
- 56.8 V
- Discharge Cut-off Voltage
- 44.8 V
- IP Rating
- IP20
- Communication
- RS485 · USB · CAN
- Cycle Life
- Up to 10,000 cycles @ 80% DoD
- Charge Temperature
- 0 to 55°C
- Discharge Temperature
- −20 to 55°C
- Installation
- Wall-mounted or floor-standing
- Warranty
- 5 Years
- Certifications
- CE · MSDS · UN38.3 · IEC 62619 · UL1973 · ROHS
— Highlights
Features
- Up to 10,000 cycles at 80% Depth of Discharge
- 280 Ah LFP cells — higher density per module
- Up to 16 modules in parallel — scale on demand
- Intelligent Nimbess BMS and cloud monitoring
- Compatible with all major hybrid inverters
